Analyzing analytic offerings

In case you’ve been living under a rock recently, the calm before the 802.11ax storm seems to increasingly be around Wi-Fi Assurance and/or Analytics. In particular, how is your Wi-Fi network performing and how happy are your clients (devices, not users). Most solutions on the market leverage a healthy dose of buzzwords to accomplish answering this question – most notably Machine Learning (ML), Artificial Intelligence (AI), Big Data, and don’t forget Cloud – to make you, the consumer feel like you’re genuinely on the bleeding edge of what a health related system can give you. It struck me during the recent MFD3 event that each of these solutions has a different way to approach the Assurance/Analytics problem, and of course each touts theirs as being ‘the best’ way to get all of the data needed to give you actionable data. Here is my take on the pro’s and con’s of some of the leading/competing solutions:

1) Mist Systems

Mist Systems claims to be the the First & Only AI-Driven WLAN – a bold statement indeed! Their primary source for retrieving statistics about users performance is directly inline from AP. This ‘at the edge’ approach allows them a deep insight into the radio and first hop performance of applications on their network. With a healthy punting of metadata to the Cloud, they claim to achieve “Automation & Insight through AI”.

Pro: A great example of ‘Cloud enabled’ Analytics and they do seem to genuinely seem to be hyper-focused on WLAN performance.

Con: Requiring Mist infrastructure means rip & replace for many organizations. Being hyper-focused on WLAN hardware leaves many organizations splitting their LAN infrastructure between vendors and that certainly diminishes the ‘one throat to choke’ troubleshooting. Visibility is at the AP layer only, ultimately leading to assumptive troubleshooting when issues outside of their visibility arise. Being a nascent company (and one of the last WLAN-only players) makes me wonder how long before they’ll be acquired.

Consumption: Cloud with a premium capex spend as well as ongoing required opex.

Bold claims!

Bold claims!

2) Cisco Meraki

Since being acquired by Cisco in November 2012, Meraki has continued to deliver on bringing features to market through their flagship product, the Meraki dashboard. The closest anyone comes to a ‘single pane of glass’ management portal, Meraki continues to shine for those Cloud-friendly organizations that have hyper-value on a single point of administration for their network. Generally, these tend to be the highly distributed organizations as opposed to the campus enterprise. Meraki’s ‘Wireless Health’ feature is in beta now and was ‘automagically’ delivered to existing customers.

Pro: Meraki’s AGILE product development targets the 80/20 rule pretty squarely. It’s ‘good enough’ for a lot of folks, and it’s ‘free’ to existing customers (if you don’t consider opex an expense of course).

Con: Wireless Health is Wi-Fi only – with no end to end correlation of their switches or security appliances, and it fragments the message around full-stack solutions. While focusing on making an ‘okay for most’ product, they certainly lose out on much of the deeper technical data commonly found in some of the larger platforms.

Consumption: Cloud with a premium capex spend as well as ongoing required opex (free to existing paying customers).

Slap a beta logo on it, call it good!

Wireless Health from Meraki

3) nyansa

Arguably *the* pioneer in Wi-Fi Assurance and Analytics, they were founded in 2013 and have a head start on most of the players in the market. Interestingly enough, nyansa is the only player in this space that not only doesn’t manufacture hardware to pitch at you, they work with an ever-growing number of existing infrastructure providers (including most of the major ones!). Leveraging an onsite ‘crawler’ to gather the data and to punt metadata to the Cloud, the onsite components are generally lightweight and assuming you’re already a VM friendly organization, no real hardware requirements (including any ripping and replacing of APs) is needed.

Pro: They’ve been at it a longer than anyone else and are clearly ahead of the game. They accept data from a variety of network sources including your LAN infrastructure so their ability to more accurately pinpoint issues is likely to be more accurate than a Wi-Fi only solution. Being able to ‘compare’ your data to peers of your own ilk is an interesting proposition and clearly one of the premier features they hang their hats on.

Con: Having an analytics only platform that’s not tightly coupled with your infrastructure leads me to wonder about the long-term stickiness of the solution. The perceived high-cost of the solution, has lead many to ‘deploy, diagnose, then remove’ – very much defeating the long term goals of Analytics and Assurance platforms. Ongoing success when ‘all is good’ is very hard to demonstrate and the vendor neutral approach leaves them vulnerable.

Consumption: Primarily an opex play since there isn’t really a capex component to speak of (no APs or appliances to install).

That's not creepy at all.

nyansa



4) 7signal

7signal has been fairly quiet on the Assurance front as of late, but they’re worth a mention. Being the pioneer in sensor driven tests, hanging an ‘eye’ to connect to your network and measure/gather various statistics about how well it’s performing has been their pitch from day 1. Falling more on the ‘stats digestion’ side of the house rather than on the ML/AI side of the spectrum, 7signal is worth noting due to their synthetic testing that closely mimics what a client sees on the network.

Pro: Client first is the best way to view the network and a sensor (or embedded into a client) is the only way to get this data.

Con: Having *only* client data means that correlation has to happen in a guesswork fashion. Coupled with a difficult install and a user interface that could stand a healthy dose of sprucing up and the platform overall is feeling pretty stale.

Consumption: Capex spend for the sensors and ongoing support and maintenance. On premises deployment model with ‘lightweight-at-best’ analytics.

5) Aruba

Aruba acquired Rasa in May of 2016 to become part of the Aruba Clarity team. They’ve since changed gears and are rolling the Rasa features into NetInsight. They’ve been relatively quiet on the productization front here, opting instead to show it off at events like Aruba Atmosphere and Mobility Field Day events. They get some interesting insights out of the education campus use case they show but I’ve not seen any readily actionable insights that don’t require some level of Data Scientist level of queries. They have the potential to move the needle in the industry here, but making it easy to use is clearly something they’re struggling with.

Pro: Buying a ready made analytics company reduces their time to market and clearly Aruba is moving aggressively to get into the analytics game here. If you’re an Aruba Wi-Fi, AirWave, or Clarity/NetInsight customer, they have some big things in store.

Con: Today the data is clearly difficult to get at. Usability leaves a lot to be desired and there is some pretty unclear things about where the platform is going. Between the legacy Clarity offering, the Rasa integration, NetInsight, and don’t forget about the recent Niara acquisition on the security side. There are lots of moving pieces here and Aruba will have to bring some quick clarity (hah!) to their consumption model.

Consumption: NetInsight productization is currently TBD, but I expect it will be Cloud-first, if not Cloud-only by the time you can get your hands on a production ready solution.

Doing thoughtful things.

Thoughtful people

6) Cisco Enterprise

Cisco has been focused on DNA-Center, the successor to the APIC-EM platform. The platform runs ‘apps’ on top, and one of the flagship applications shipping today is DNA Assurance. This platform is the ‘all-in’ Cisco assurance platform that takes data from everywhere you can think of – netflow feeds from your WLC and/or switch, radio data from the AP, synthetic data from sensors, and feedback from actual clients. In short, they take the best of all worlds and attempt to lump it into one big platform without giving people the heebie-jeebies about their data being in the Cloud.

Pro: Ambitiously Cisco is taking the ‘whatever you can feed me’ approach to Analytics and Assurance. The more feeds you can send to it, the better. This allows organizations to deploy the solution components that make sense to them and add more later if they want improved fidelity. Deploying an Analytics platform that you can actually run onsite in a 1RU appliance is no small feat and will be an undoubted boon for those Cloud adverse.

Cons: All of that horsepower isn’t cheap. Coupled with Cisco’s somewhat tarnished reputation as of late around code quality makes some people nervous about ‘one box to rule them all’, but this should generally be a mitigated concern for out-of-band analytics. Of course, this all works best if you’re Cisco end to end and that could be perceived as a negative to some.

Consumption: On premises hardware appliance fed by Cloud updates for the applications. Your Cisco ONE licensing consumption model and Smart Licenses will be key to getting this off of the ground, but so far there is no ‘break if you don’t pay’ approach.

I hope that the roll-up was a useful overview to the Analytics and Assurance market as it sits today. Did I miss anyone? Let me know and I’ll try and get a summarization up for you ASAP!

Advertisements

AirCheck G2 gets a v3

You may recall my blog post year lauding the version 2 firmware for the Netscout G2. I’m very pleased that Netscout has continued product development, taking feedback from users (including myself) on ways to further improve the already-awesome AirCheck G2. I’ve been working with the v3 firmware for the AirCheck for a bit over a month now and I’m happy to report in with my new favorite improvements – all delivered via a software update under a current support contract!

1) Improved packet captures

One of the things I didn’t write about last time was the ability to do packet captures that was introduced in v2. Admittedly, it felt somewhat half-baked and there are two very important enhancements that make this the tool I always hoped it would be. Firstly, we get the ability to slice packets. Those of you familiar with packet captures will know that in the vast majority of cases, we’re interested with the beginning of the 802.11 frames (since the payload is commonly encrypted). The ability to slice packets means that we can get very valuable packet-level analysis without capturing the entire frame!

Note the 'Slice Size' link set to 64 B

Packet slicing

Secondly (and leading directly into my next favorite thing) is a *much* easier way to get the actual packet captures off of the AirCheck. In the past (and in addition to dealing with file sizes that were needlessly cumbersome), you’d have to grab the AirCheck G2 Desktop software and hook your AirCheck up to a computer to copy the capture off. Now you can just plug in an ethernet cable and the upload the tests right into the Link-Live service that comes included with your AirCheck! From there, you can download the raw .pcap file for use in your favorite packet capture analysis tool (Omnipeek, CloudShark, WireShark, Wi-Fi Analyzer, etc).

Download your packets here!

.pcap files in Link-Live

2. Cloud (Link-Live all the things)

You may have guessed from my above comments that the Cloud enablement is right up there on my list of awesome things that this update brings. With a notable decrease in reliance on the Windows-only desktop application, the improved Link-Live integration now supports a whole slew of AirCheck uploads including:

  • Full AutoTest results
  • Session files
  • Screenshots
  • Packet captures (mentioned above)
  • Job, location, comments

Further reliance on the Link-Live portal is clearly a huge focus for the AirCheck team and they’ve delivered on many key integrations to help our field teams get data off of the AirCheck G2s in a timely fashion. In addition to being able to pull files off of the AirChecks enabled by Link-Live, the ability to push profiles lands squarely in the ‘awesome to have’ column. Being able to upload pre-configured profiles to your fleet units removes much of the inconsistencies that large teams can sometimes run across.

3. Over the network firmware updates

Last, but certainly not least of the new features, the ability to do over-the-network firmware updates means that you no longer have to have access to a USB cable and Windows machine just to get all of the future improvements that Netscout is clearly on track to deliver. For an awesome product that continues to get software based improvements that genuinely move the needle, this feature changes the game for getting current software onto our AirChecks. Simply plug the unit into a working network connect and click the ‘Check for Software Updates’ and you’re good to go!

Right from the UI!

Software Update

Way to go Netscout team for bring a truck load of features to an already indispensable tool. Making new features that people will actually use (as opposed to the bloat we commonly see) is not only a refreshing take from the Netscout team, but continues to make the AirCheck G2 the best in Wi-Fi handheld triage tools. If you’ve not gotten your hands on an AirCheck G2 by now, you’re missing out.

Management Frame Detection?

Nope! But MFD does stand for something even more exciting! Mobility Field Day (3!) is just around the corner! As a long time delegate with a few minutes to burn on the family PTO trip, I thought I’d take a moment to reflect on the upcoming event. As you can see from the Tech Field Day page there are tons of great sponsors lined up. Here is my take on the coming week, the sponsors strengths, weaknesses, and what I’d like to see. In order of presentation:

Arista (http://techfieldday.com/companies/arista-networks/, @AristaNetworks)

Arista has made a splash in the Wi-Fi space with their recent acquisition of Mojo Networks (nee: AirTight). I’m happy to see Mojo get scooped up, especially in the ever diminishing landscape of infrastructure providers especially since they have a strong story about ‘hardware agnostic’ solutions. Their story since the AirTight days has been one of open platforms and this strength has carried them to the success they’ve had so far. Arista has not. Admittedly I’m not a strong Data Center switch guy, but I don’t see a similar story of how the open, commodity hardware platforms with custom ‘better than you’ software on top meshes well with their corporate messaging. I’d love to see some reconciliation on that front, and a clear vision for the Mojo team moving forward. Please spare me the ‘HP acquired Aruba’, ‘Cisco acquired Meraki’, and those companies are fine story. Paint me a genuine story of market leadership backed by strong technical chops that promise to survive the acquisition.

Aruba (http://www.arubanetworks.com/, @ArubaNetworks)

Aruba (a Hewlett Packard Enterprise company) has been touting ‘industry leadership’ on several fronts recently. They have clearly claimed leadership on several fronts including WPA3 and some intriguing messaging around 802.11ax. Their strength is messaging. They do it well, but I fail to see how Aruba single handedly ‘landed’ WPA3 and how their messaging around 802.11ax (buy when *we’re* ready, but not anyone else) is anything more than corporate marketing fluff. I’d love to see how they are helping the industry move forward *as a whole* on more than just ‘standards stuff coming down the road’. Help me understand why Aruba’s implementation of QCA radios is better than someone else’s. Help me understand why their switches brings more value to an enterprise other than an ABC play. Help me understand why end to end networking with the Aruba logo on it is better.

Cisco (http://www.cisco.com/, @Cisco)

Cisco, the 800 lb. gorilla that everyone loves to hate. Cisco is a machine unlike any other. They have critical mass despite themselves and are painting some intriguing messaging around Assurance products that seem to resonate well with the on-premises enterprises. All other networking aside (routing, switching, security, Data Center, etc), Cisco Wi-Fi has seemingly lost its way as of late. Their adoption of QCA radios (CleanAir is awesome, unless they sell an AP without it!), their continued duality around the Meraki acquisition (it’s right when it will land a sale), and the feature gaps as new platforms come online has always stuck in my craw. The 802.11ac wave 2 APCOS change (the OS on the APs) debacle has left many with souring appetites for a monolithic beast of an assurance platform. I’d love to see how Cisco is involved in driving standards (WPA3, 802.11ax) while allowing their ecosystem around CCX fall to the wayside despite not having a standards based equivalent to 100% of those components (DTPC anyone?).

Fortinet (http://fortinet.com/, @Fortinet)

Fortinet (nee: Meru) has always been intriguing to me. If there is a dark horse in the Wi-Fi space, this is it. Out of left field, some strange security company acquired ‘those SCA guys’ which raised more than a few eyebrows in the industry. I’m not super passionate about firewalls so when someone touts that their strong suit is plopping some security stuff onto an already delicate Wi-Fi ecosystem, I get nervous. I’d love to see what Fortinet is doing on the SCA front (other than the occasional corner case deployment). How are you fostering the technology that made Meru, Meru? If you’re going to be the one exception in the CWNP curriculum, own that. Embrace it, get the delegates to see what makes it special. Get into the nuts and bolts of how it works, what makes it tick. Get your radio firmware developer into the room and nerd out with us for a bit. Don’t be afraid to put that unpolished guy on stage that only knows protocol. We love that kind of stuff.

Mist (http://mist.com, @MistSystems)

Mist is on the short list of Wi-Fi only players that I suspect will be acquired soon. Between them and AeroHive, there aren’t many players left and to be fair, Mist came out of nowhere when Cisco ‘spun out’ (my speculation) the previous owners of the AireOS legacy. They claimed virtual BLE was the next big thing, now it’s AI driven Wi-Fi – what’s next? Do they realize that the ‘heritage’ that they claim ownership of has turned off more people than it’s attracted? When someone claims to be at the helm of Cisco Wi-Fi during the Meraki acquisition, or to have the father of controllers (and RRM) in the drivers seat, how is that a compelling story when so many of todays woes are centered around those two topics? I’d like to hear how Mist has those people at the helm, but how they’re not destined to repeat the past. Mist claims to have an AI driven interface but fails to answer some pretty plain english queries. Tell me how Mist is better. How the AI is not just a bunch of if statements. Burning Man Wi-Fi, I hope not!

NETSCOUT (http://www.netscout.com, @NETSCOUT)

NETSCOUT (or is it netscout or NetScout?) has long held the mantle of go to wired insight products and only recently entered into the Wi-Fi foray with the Fluke (nee: AirMagnet) acquisition. They inherited an impressive product in the AirCheck G2, but also a legacy of tools that are, quite frankly, stale. What is next for the G2? Many of us in the industry love our hulk green Wi-Fi diagnostics tool and the G2 v2 additions were welcome. Is there enough left in the AirCheck to hope for a v3? I’d love to see a cleaner picture about link-live and how it plays a role in the beloved AirCheck G2. I’d love to hear a definitive story on the likes of AirMagnet Survey Pro, Wi-Fi Analyzer, Spectrum XT – all of which are *very* stale. Let’s put these to bed or make something of them that the industry can use.

nyansa (http://www.nyansa.com, @Nyansa)

nyansa has been that strange analytics company with the funny name that promises to fix all of our ails through machine learning and comparative analytics. They’re doing some neat things with ‘just a bunch of flows’, but is it enough? It seems like everyone is jumping on the analytics bandwagon now a days, but with the hefty price tag for a point-in-time resolution product, it feels somewhat estranged. Do you know what happens when your help desk has 9 dashboards all with different data in it, and you try to aggregate and correlate it into a meaningful dashboard? Your help desk now has 10 dashboards. I’d love to see why your data is better (of course), but tell me how it gets rid of data I don’t use today, and tell me how it does it at a price point that makes it a no brainer.

Dear reader, what do you want to see? Feel free to reach out to me by comment, or privately, or on twitter before or during the event and I’ll make sure you get a response. Till then, see you at MFD3 on September 12 through the 14th – make sure to tune in at: http://techfieldday.com/event/mfd3/

Hands on the Cisco 3504 WLC

Not only are WLCs not dead, they’re not even on life support. Continued investment into the WLC platform is a clear indicator that there are still several use cases for centralized data, control, and management plane functions. Cisco has a long heritage of building awesome Wireless LAN Controllers (WLCs) and the 3504 is the next in a long line of purpose built WLCs. If you’re familiar with the Cisco WLC portfolio, the 5520 and 8540 WLCs are basically UCS based appliances with hardware offloading cards added in. The 3504 returns to the heritage of a ‘from the ground up’ design of a purpose built desktop WLC solution and it’s aimed pretty squarely at the aging 2504 and 5508 platforms. As many people are moving forward with 802.11ac deployments, a look at your infrastructure controller may be warranted.


Without going into the details that are readily available on the data-sheet, I’ll instead focus on one or two key items of the platform that I find the most compelling.

1) Feature parity. This WLC marks the first time the entry level boxes have feature parity with the larger WLCs. If you peruse any of the release notes, you’ll see a list of exceptions for various platforms especially on the low end. The 3504 was launched out of the gate expecting to support all of the features of the 5520 & 8540 making the differences between the three platforms strictly speeds, feeds, and capacity. This should be a comfort to those that regularly struggle with the feature gap in the Cisco WLC portfolio.


2) Quiet operation. Let’s be honest, there are more than a few deployments where the equipment is sitting table top or on a cabinet out in the open somewhere. The 3504 supports ‘fan off’ operation at temperatures up to 86 F (30 C). For the overwhelming majority of situations, it’s difficult to get up to 86 degrees and maintain it with any level of comfort. This basically means that for most deployments, you’ll never hear a sound coming out of the WLC – even if it’s in your home lab.


3) mGig support. Multigigabit (or NBASE-T) is becoming more and more prevalent on switching infrastructure and this marks the first time we can break the 1G link speed on the infrastructure side without having to deploy a full on 10G infrastructure. Those of you that read my posts regularly may recall that I’m a fan of being able to deploy solutions that break the 1G barrier on my existing copper runs. This was commonly APs but if you’ve been investing in the latest and greatest and ignoring the FUD about not needing mGig, this is another opportunity to leverage that investment.


All of these coupled together mean that you can get a quite elegant solution for most any environment now that we’re able to breath some life into the low end of the Cisco WLC portfolio. The 3504 is a notable improvement on the hardware and scale of the 2504 but don’t let it’s ‘desktop friendliness’ fool you – if you’re a 5508 customer today, there are going to be tons of places where ‘stepping down’ into a 3504 makes really great sense. With the rack mount kit available for it, you could easily put two 3504s in HA/SSO mode in 1RU and have all of the same features as the 5508 with a bit less capacity. Regardless of your current deployment, you really should make sure you take a peek at the 3504 as you’re considering lifecycle management of your gear.


Disclaimer: I was provided a 3504 from Cisco as part of an early field trial and formed my opinions on my own. This post is my original work and I composed it without an expectation from Cisco.

Portable power for APoS

Newer APs often come with some pretty hefty power requirements. Standards such as the 15.4W 802.3af specification are increasingly insufficient on APs that are more power hungry. Enter the 802.3at standard that can support all the way up to 30.0W! While runtime operation of these (over PoE switches) is a topic all of itself, the Wi-Fi professional has always had issues with doing AP on a Stick designs (site surveys, empirical measurements) – especially when your AP power requirements exceed some of the more tried and true solutions. I’ve hashed out several different solutions over the past year, and thought it was time to write them all down.

The staple of AP powering has been for a very long time the Ventev / TerraWave – MIMO Site Survey Battery Pack. On its own, it only supports the older 802.3af specification. This all in one solution is portable, but since it’s based on old lead-acid technologies, it tends to fall on the heavier side of the solutions. Venerable, heavy, doesn’t support newer APs, but everyone has them.

Old, heavy, not a lot of juice.

The Terrawave Site Survey Battery Pack!

Enter the Tycon Systems DC To DC Converter And POE Inserter. This bad boy becomes an integral part of most of the rest of our solutions – and it’s very important to understand that it comes in a variety of input voltages. You must mate it to the power solution you’re using.

Where have you been all my life?

The Tycon POE injector.

Using the Ventev MIMO Site Survey Battery pack, you can see from it’s data sheet that it supports an external 56V output. If you use the included 56V cable, cut the ends off and mate that with the Tycon that has 802.3at power output, you can retrofit existing site survey battery packs to support newer high power APs! Sadly, physics wins out at some point. Since you’re drawing more power, invariably your battery will not last as long. If you have an older unit, you may be having problems holding a charge or any other number of other issues, but if you’re in a bind, it’s a potential solution.

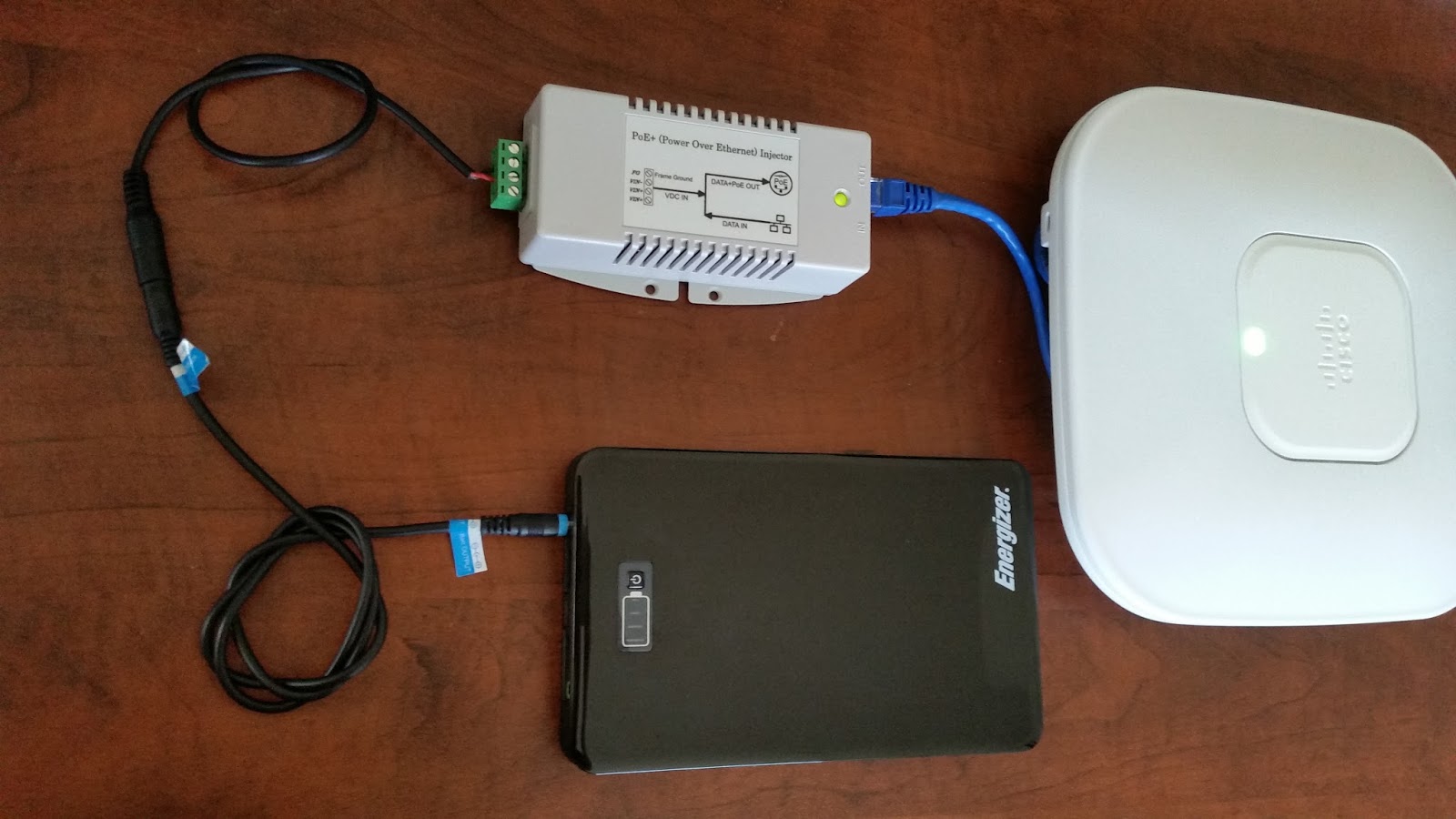

If you think this Tycon solution looks familiar, Scott Stapleton wrote about a similar solution in his blog. Using the injector that he stated (TP-DCDC-1248GD-HP, note the 10 to 15VDC input change), along with commonly available batteries such as the RAV power units, you can extend the run time of your APoS efforts by interchanging either larger capacity batteries or additional units. In my tests, I used two of the RAVPower 2300mAh batteries along with the Jacobs interconnect to complete the solution.

Shhh - don't tell him!

Image shamelessly stolen from Scott Stapleton.

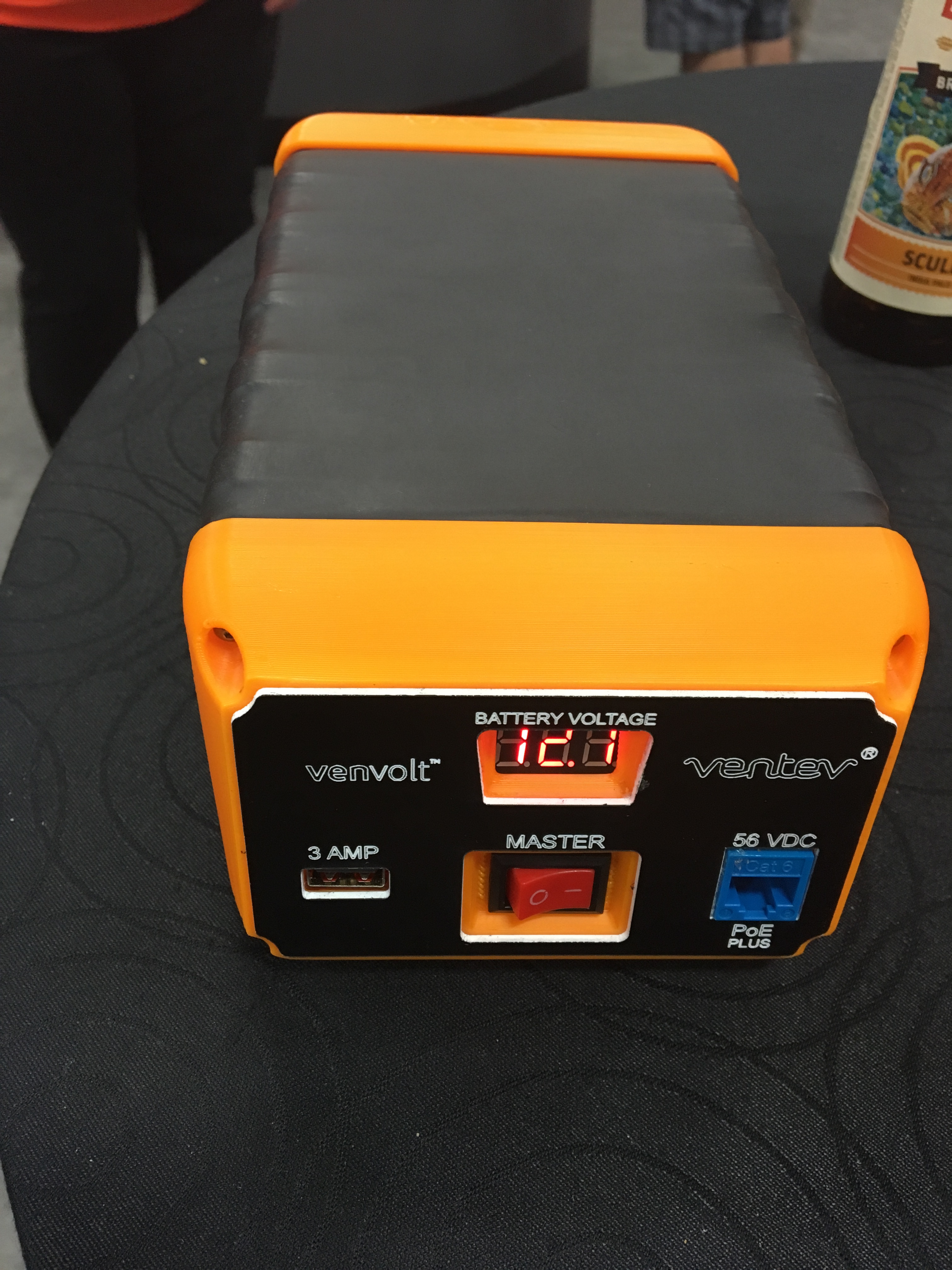

Thanks to Keith Parsons for this next solution, which is a variation on Scott’s using a battery from Hardened Power Systems. The ReVolt G2 is a large capacity battery that uses 12V powerpole connectors that is *very* light (27 ounces) due to the LiFePO4 battery technology. This, mated with correct Tycon solution using the 12V powerpole connectors gives you a far more portable solution (one high capacity battery, one injector) that can last all day long!

High Capacity Battery, lightweight.

While these all address in varying ways different requirements, they’re all considered a touch on the bulky side and carrying around multiple pieces has always been a challenge for a road warrior that doesn’t want to lose or break bits and pieces. Enter the Ventev VenVolt solution that they were showing off at Cisco Live US 2017. While this isn’t shipping yet, they had a prototype to show off that looked awesome! Lightweight, all in one solution, all day battery on modern technology. Stated dimensions for the unit are 9 3/8″ x 4 3/4″ x 3″ according to Mike Parry. I for one can’t wait for a fully integrated solution to finish baking and come to market!

Cisco Wave2 site survey how-to

So, you have a shiny new Cisco 802.11ac wave 2 Access Point and you went to go grab the autonomous code for it to do an APoS survey – but then realized there isn’t autonomous code for the 2802 or 3802 (or any other wave 2) Cisco AP, huh? You may have noticed that there is a new product called Mobility Express. You can use this ‘controller on an AP’. Here is a guide I co-authored for doing just this.

-Sam

Summary:

Cisco 802.11ac Wave 2 APs do not run IOS like previous platforms. This presents a challenge when trying to perform an AP on a Stick site survey with only a battery pack. The standalone mode for these Access Points is achieved using Mobility Express – or the function to use the integrated WLC on the Access Point to control the radio functionality in a standalone fashion.

Prerequisites:

  • 8.3MR1 code supporting Mobility Express for your Access Point
  • Local power source for your Access Point (AIR-PWR-C or site survey battery with sufficient power)
  • Operational Standalone or Virtual Wireless Lan Controller running 8.2MR2 or 8.3 for configuring the Access Point mode and moving the images
  • TFTP server
  • 802.11ac Wave 2 Access Point (Please note, the 1810 platform is not supported at the time of this writing)
  • A serial console cable to watch/configure your AP

Process:

Step 1) Join your Access Point to your local WLC as you would during a normal deployment.

For the 2800/3800 platforms, you must be running a minimum of 8.2MR2 or 8.3 for step 1. For 1830/1850, there is no similar requirement aside from running a release that supports those platforms. Please note that this is not the above referenced ME image version which will be used in step 2.

Step 2) Convert the Access Point to Mobility Express mode using the correct image.

This is accomplished by going to the console of the AP and logging in, then enabling, then using the ap-type command to convert the AP over to Mobility Express and download the new image from your TFTP server. To get the correct AP image file, you will need to decompress the image bundle and use the correct image for your AP platform. For example:

  • 1830/1850 you should use ap1g4
  • 2800/3800 you should use ap3g3

Note: You can also use the platform specific ME image from CCO if you have that available. If you’re using a Universal SKU AP, you should wait for it to regulatory prime before trying to convert the image to make sure you don’t incur a reboot mid-code change.

Once your AP goes down for a reboot, disconnect the LAN cable and ensure its powered by local power or your survey battery pack:

Step 3) Wait for your Access Point to boot completely.

At this point your Access Point will do several things. It will boot and you will see about 2 minutes of the following messages:

Once these timeout, the Access Point will boot the Mobility Express WLC automatically:

Step 4) Configure the WLC using the following values:

Would you like to terminate autoinstall? [yes]: yes
Enter Administrative User Name (24 characters max): admin
Enter Administrative Password (3 to 24 characters): Cisco123
Re-enter Administrative Password : Cisco123
System Name [Cisco_11:aa:1a] (31 characters max): ME_WLC
Enter Country Code list (enter ‘help’ for a list of countries) [US]: US
Configure a NTP server now? [YES][no]: no
Configure the system time now? [YES][no]: yes
Enter the date in MM/DD/YY format: <date>
Enter the time in HH:MM:SS format: <time>
Enter timezone location index (enter ‘help’ for a list of timezones): 7
Management Interface IP Address: 192.168.1.2
Management Interface Netmask: 255.255.255.0
Management Interface Default Router: 192.168.1.1
Create Management DHCP Scope? [yes][NO]: yes
DHCP Network : 192.168.1.0
DHCP Netmask : 255.255.255.0
Router IP: 192.168.1.1
Start DHCP IP address: 192.168.1.10
Stop DHCP IP address: 192.168.1.200
DomainName : me.local
DNS Server : [OPENDNS][user DNS] OPENDNS
Create Employee Network? [YES][no]: yes
Employee Network Name (SSID)?: survey_ME
NOTE, USE YOUR INITIALS INSTEAD OF ‘ME’ TO DIFFERENTIATE YOUR SSID
Employee VLAN Identifier? [MGMT][1-4095]: MGMT
Employee Network Security? [PSK][enterprise]: PSK
Employee PSK Passphrase (8-38 characters)?: <temp key>
Re-enter Employee PSK Passphrase: <temp key>
Create Guest Network? [yes][NO]: no
Enable RF Parameter Optimization? [YES][no]: no
Configuration correct? If yes, system will save it and reset. [yes][NO]: yes

It is highly recommended to use the values above. Once the Access Point reboots continue on.

Step 5) Clean up the AP

Some of the defaults are not completely friendly. We’ll clean those up now. Discover the name of the Access Point using ‘show ap summary’ and rename it to something more friendly like ‘ap’. It should be noted that renaming your Access Point to ‘ap’ will make configurations easier and in line with the examples below, but if you’re part of a larger team and require unique Access Point names, this is where you would set them, making note to use your defined Access Point name instead of the shortened name ‘ap’ as described in the rest of this document.

Next we want to disable the PSK security on the WLAN for easier association and testing and enable Aironet Extensions to include the AP name in beacons. This step is optional, but recommended. You must first disable the WLAN, the disable the PSK, then re-enable the WLAN:

(Cisco Controller) >config wlan disable 1
(Cisco Controller) >config wlan security wpa disable 1
(Cisco Controller) >config wlan ccx aironetIeSupport enable 1
(Cisco Controller) >config wlan enable 1
(Cisco Controller) >save config
Are you sure you want to save? (y/n) y

Once you’ve made these changes, perform a ‘save config’ as shown on the WLC to ensure the changes aren’t overwritten.

Step 6) Configure your radios for site survey specifics including channel and TX power.

To set these values, you must admin disable the radio, make the change, then re-enable it. Remember, these are the same commands you’d use on a production, bare-metal WLC and are not new. Here are a few examples:

To change the 2.4GHz radio to channel 6:
(Cisco Controller) >config 802.11b disable ap
(Cisco Controller) >config 802.11b channel ap ap 6
(Cisco Controller) >config 802.11b enable ap

To change the 2.4GHz radio to power level 3:
(Cisco Controller) >config 802.11b disable ap
(Cisco Controller) >config 802.11b txPower ap ap 3
(Cisco Controller) >config 802.11b enable ap

To change the 5GHz radio to channel 44:
(Cisco Controller) >config 802.11a disable ap
(Cisco Controller) >config 802.11a channel ap ap 44
(Cisco Controller) >config 802.11a enable ap

To change the 5GHz radio to power level 5:
(Cisco Controller) >config 802.11a disable ap
(Cisco Controller) >config 802.11a txpower ap ap 5
(Cisco Controller) >config 802.11a enable ap

To change the 5GHz radio width to 40MHz:
(Cisco Controller) >config 802.11a disable ap
(Cisco Controller) >config 802.11a chan_width ap 40
(Cisco Controller) >config 802.11a enable ap

Of course, you can couple all of these commands together to reduce the number of times you’re disabling your radio if you’re doing an initial configuration. Here is an example of setting the radios both to power level 2 and the 2.4GHz radio to channel 11, and the 5GHz channel to 100@40MHz all in one script:

(Cisco Controller) >config 802.11b disable ap
(Cisco Controller) >config 802.11a disable ap
(Cisco Controller) >config 802.11b channel ap ap 11
(Cisco Controller) >config 802.11b txPower ap ap 2
(Cisco Controller) >config 802.11a channel ap ap 100
(Cisco Controller) >config 802.11a txpower ap ap 2
(Cisco Controller) >config 802.11a chan_width ap 40
(Cisco Controller) >config 802.11b enable ap
(Cisco Controller) >config 802.11a enable ap

To see the channel of the Access Point currently configured, use the ‘show ap channel ap’ command:

To see the power level of the Access Point currently configured, use the ‘show ap config slot 0 ap’ (for 2.4GHz) or ‘show ap config slot 1 ap’ (for 5GHz’ command and look for the following data:

Alternatively, use the grep command to just pick out the data you’re interested in:

Step 7) Alternative management via the WLC GUI

If you’ve followed this guide up till now, you can also access the management interface of the WLC by using your PC and joining your open survey SSID. Then open a web browser and navigate to https://192.168.1.2/ .

Step 8) Putting it all back the way you found it

To convert the AP back to capwap mode and undo this configuration, you must goto the AP console using ‘apciscoshell’ and perform the ‘ap-type’ command again:

Addendum:

Dual role radio notes:

The AP2800 and AP3800 both include the ability to change the slot 0 radios personality from 2.4GHz to 5GHz. This presents some unique configuration considerations as follows:

To convert the XOR radio from the default 2.4GHz to 5GHz and change its channel to 40 @ 40MHz wide use:
(Cisco Controller) >config 802.11-abgn disable ap
(Cisco Controller) >config 802.11-abgn role ap manual client-serving
(Cisco Controller) >config 802.11-abgn band ap ap 5GHz
(Cisco Controller) >config 802.11-abgn channel ap ap 40
(Cisco Controller) >config 802.11-abgn chan_width ap 40
(Cisco Controller) >config 802.11-abgn enable ap

The following should be noted for this configuration:

When you convert the XOR radio into 5GHz mode, you must use a channel that is 100MHz apart from the slot 1 radio in the Access Point. When you configure the XOR radio into 5GHz mode on an ‘e’ model of AP, you must have an external antenna plugged into the DART connector or this configuration will fail. When you configure the XOR radio into 5GHz mode on an ‘i’ model of AP, the tx power will be fixed and not modifiable (by design) to its lowest possible value to retain micro-cell integrity.

To change the XOR radio from a configured 5GHz to 2.4GHz and change its channel to 6 use:

(Cisco Controller) >config 802.11-abgn disable ap
(Cisco Controller) >config 802.11-abgn band ap ap 2.4GHz
(Cisco Controller) >config 802.11-abgn channel ap ap 6
(Cisco Controller) >config 802.11-abgn enable ap

NETSCOUT AirCheck G2 unleashed!

This blog post is part 1 of a multipart series on the new generation of Wi-Fi tools. There has been a dramatic evolution of the various tools that the WiFi professional uses over the past year or so . I wanted to take a moment and spell out my thoughts on the current state of tools in our industry.

First shown at the Wireless Field Day 1 in San Jose the Fluke AirCheck rapidly became the staple of the ‘serious’ WLAN troubleshooter. It made a huge splash and was immediately lauded for it’s easy straightforward to getting down to the serious data that you need to see when troubleshooting your wireless network. All of the heavy hitters in the industry have been talking about them since then and it’s almost unbelievable that it was just assumed that people would have them on anything but the most entry level of jobs. The platform had very few deficiencies overall and almost became part of the de-facto tool that you would be expected to know and use – almost like site survey software.

The G2

AirCheck G2 – The green is a nice touch!

It’s hard to think of something replacing the Fluke AirCheck but the inevitable has happened. There is and Application & Network Performance Management company called NETSCOUT recently acquired the Fluke team responsible for the AirCheck – which was in the midst of developing the next generation of the product. Launched late last month, the AirCheck G2 promises to best it’s predecessor in several areas. Head on over to the official announcement and keep a keen eye out for a quote or two from yours truly! 🙂



IMG_2593

I was fortunate enough to be included early on in the development conversations of the AirCheck G2 and so like to believe that I helped shape in some small way the look, feel, and usability of the product as it exists today. From early on, there was a focus on the ‘gimme’ features such as inclusion of a color touchscreen. Other features didn’t develop till later on such as the built in ethernet port for wired testing in the field. Those of you that love the LinkSprinter functionality, this is aimed squarely at you! In fact, there is a laundry list of features that read like a who’s who of todays troubleshooting gear – 802.11ac support, long life battery, external antenna support, USB expansion ports, on screen keyboard and navigation menus, auto testing, and rapid boot & shutdown, just to name a few.

Note the External Antenna port on the far right (capped) for the directional antenna attachment.

Note the External Antenna port on the far right (capped) for the directional antenna attachment.

By far and away though, the feature that I’m most enamored with at the moment is the Link-Live.com integration. Starting with an easy way to claim the devices online, a one stop shop for getting your software and updates, and of course, upload notifications of the testing you’ve just done – the ability to bring Organizational structure to such an outstanding troubleshooting tool really brings the product full circle. NETSCOUT has done a superb job of rolling functionality and usability into a cloud based product and included it with the product! This wraps up all of the auto-testing into an easy to use and store place for testing and validation. While this may seem like simple functionality, for an organization with multiple units in the field, this sort of automated cloud-rollup functionality is hands down one of the best features of the AirCheck – and that’s saying a lot!

Useful for making sure the link you're using is functional!

Useful for making sure the link you’re using is functional!

If you haven’t had a chance to get your hands on an AirCheck or have been waiting for a refresh to make the product ‘perfect’, now is the time. You should go ask your VAR, NETSCOUT rep, or beg borrow or steal one to get some time under your belt with one. The simplicity of the product, ease of use, intuitive navigation, and ready access to some very in-depth and advanced data in a straightforward way to consume it.
